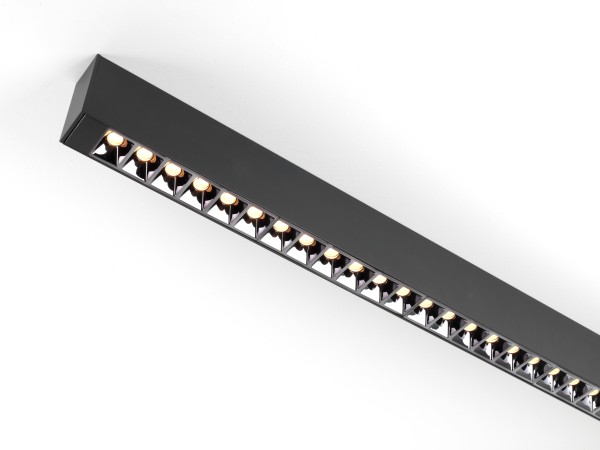

Gridline

Specifications

LED LM output	346lm / Gridmodule
Power cons.	3,5W / Gridmodule
Drive current	230V built-in driver
Color temp	2700K / 3000K
CRI/GAI	>92
Reflector	42,5°
Finish	White RAL 9016 tex. / Black RAL 9005 tex. / Anodised Alu / Bronze / Gun Metal Bronze / Champagne

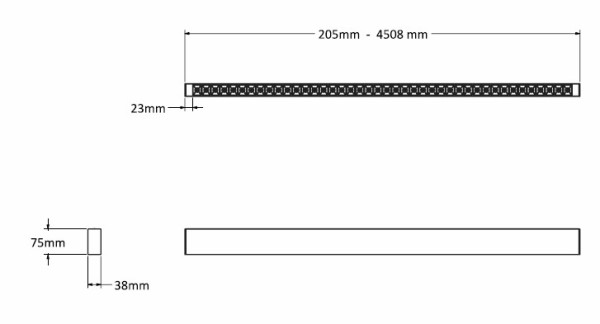

Remark	Finish Grids: White (WH) Black (BL) Rose Gold (RG) Black Chrome (BC) Matt Gold (MG) Mounting options: On, Suspension, Suspension + Uplight Available lengths: 1160mm (Full Gridline) 7 modules (27,5 W) 1480mm (Full Gridline) 9 modules (35 W) 1795mm (Full Gridline) 11 modules (43 W) 2275mm (Full Gridline) 14 modules (55 W) 1160mm (3 Grid Modules) 1480mm (4 Grid Modules) 2275mm (5 Grid Modules) Specials on request
