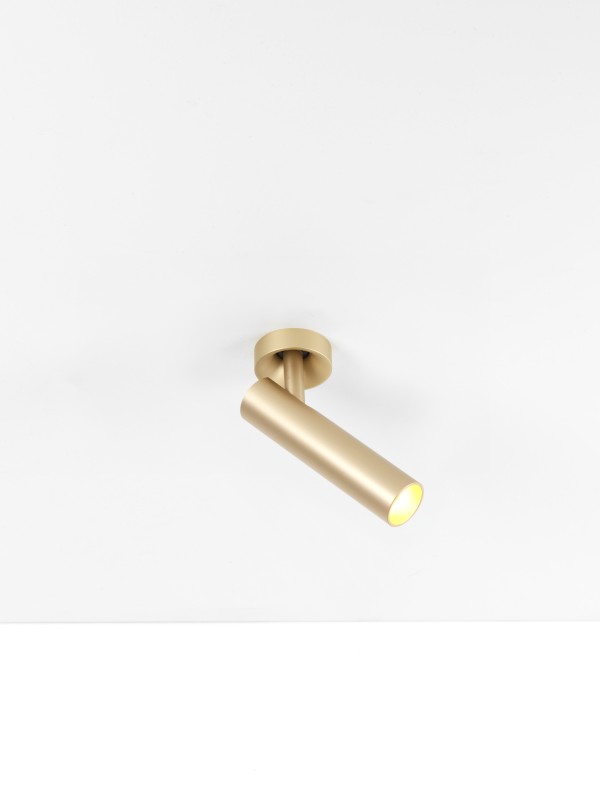

Jack I4

General info

JAF/C/9CT/R - Jack
JA2F/9CT/R – Jack²
ATJAF/9CT/R - Jack AT
AT2JAF/9CT/R - Jack 2 AT
ATLJAF/9CT/R - Jack AT LOW
ATL2JAF/9CT/R - Jack 2 AT LOW

F = Finish / C = ceiling base / CT = Color temp. / R = Reflector

Jack is available with O4, I4 and I6 ceiling base.
Jack² always needs a Jackpoint option to plug into.
With Jackpoint Stretch ceiling option there is no canopy visible when Jack² is plugged in.

Specifications

LED LM output	420 lm
Power cons.	4,2W
Drive current	48Vdc
Color temp	2700K / 3000K
CRI/GAI	>90
Reflector	16° - 25° - 48°
Finish	Black (BL) / White (WH) / Brushed Ano (BA) / Bronze (BR) / Gun Metal Bronze (GM) / Champagne (CH) / Canon Fusil (CF)

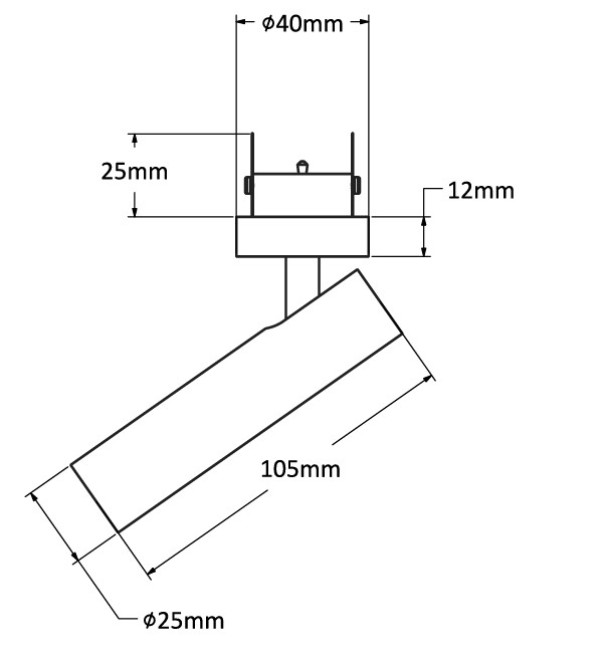

Cut-out	Ø 35 mm
Remark	Options: C6004 – Jack Honeycomb option only dali dimmable 48 Vdc with Dali on board driver not included

Downloads

Jack JA

Download PDF datasheet
